The machine is with comfortable design, small dimension, light weight, low noise, low power consumption, high efficiency, no dust pollution , easy to install and move, durable, materials size can be identified and discharged speedily and automatically.

The mesh can be self-cleaned, no powder fly, discharge speedily, high efficiency and the finest mesh size is up to 400mesh or even finer.

Unique screen structure is convenient and easy to install or change mesh which only takes 3-5 minutes, simple to operate and easy to clean.

Easy maintenance,can be assembled as a single layer or multiple layers depends on actual need.  All parts contact to raw materials are made of stainless steel, which is environmental friendly and hygiene.

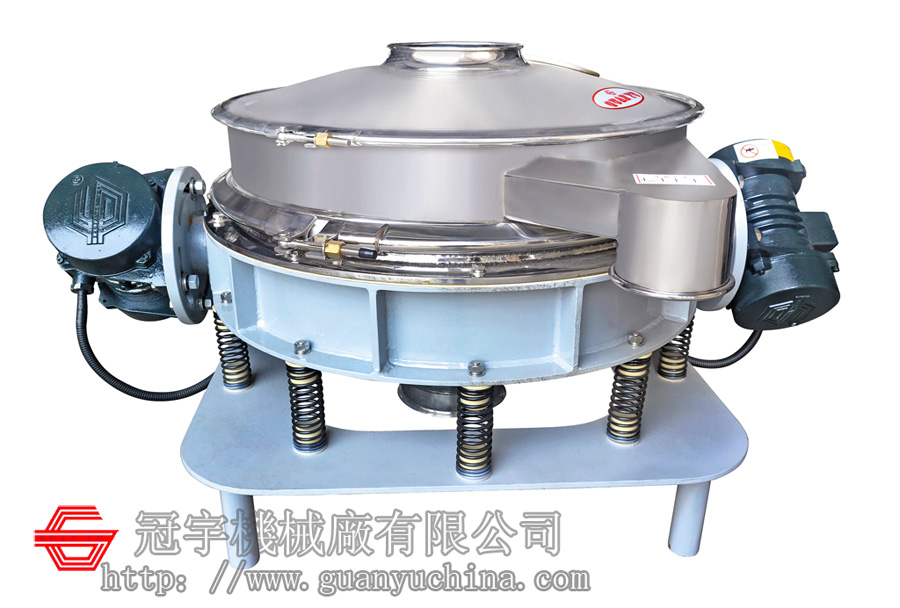

Checking Sieve equips with two horizontal motors which are with reverse rotational vibration constantly to each other.  While the 2 motors and eccentric arms with different installed angles, it generates the directional gravity force periodically.  The material travels direction will therefore differ andcreate the direct fall and sieving result.

Optimum Efficiency of Material Motion: Eccentric arms angle: 90 °, motor angle 45 ° ~ 75 °, the material makes projectile motion and can be screened and graded, achieving the best results.

Motor

Spring

Rubber seal

Capacity: 600 - 1,000kg /1 h (estimated with 60 mesh for flour)

Is there any damage of the machine during transportation?

Ensure all the components are fastened, no broken on the sieves, no damage on the machine body, electrical cables are connected properly, and if ground wire is in position?

Check whether the model and specifications of the product are the same as your order and whether the power supply is same as shown on the machine plaque (voltage ± 10).

Prior to operate the separator, ensure all the components are fastened, no broken on the sieves, no damage on the machine body, electrical cables are connected properly, and the power supply is the conformed voltage and ground lead is in position.  It is strictly prohibited to have the motor run with default phase and not allowed to knife switching on / off.

This machine should keep a distance of at least 500mm with the surrounding objects and be installed levelly and steadily.

While switch on, motor operation in anti-clockwise is correct direction.

The upper and lower eccentric arms angles are set before delivery, if the using effect is not good, please adjust by referring to the working principle.

Cut off the power when not in use. It is prohibited to rinse the motor when cleaning the machine to prevent electric shock.

Keep the screen clean; use suitable detergent according to the filtered material; meanwhile it is prohibited to crash the screen with sharp or hard objects to prevent damage.

The motor eccentric arms angle must not exceed 75 ° to avoid centrifugal force damages the machine structure.

The machine is suitable for continuously and steadily material feeding.  Maximum distance from feeder to screen is 150mm.  Alternatively, a buffer equipment to be considered to set up in between if the gap is bigger than 150mm. It will achieve the best effect when the screen can sieve the material feed timely.

Warranty period of this machine is 1 year under conditions of normal use. Within the warranty period, if any abnormal sound is found during use, please stop to check the machine immediately, if it cannot be solved, please contact us timely (Do not demount the motor by yourself, or we shall not provide the warranty service).
