Principle:

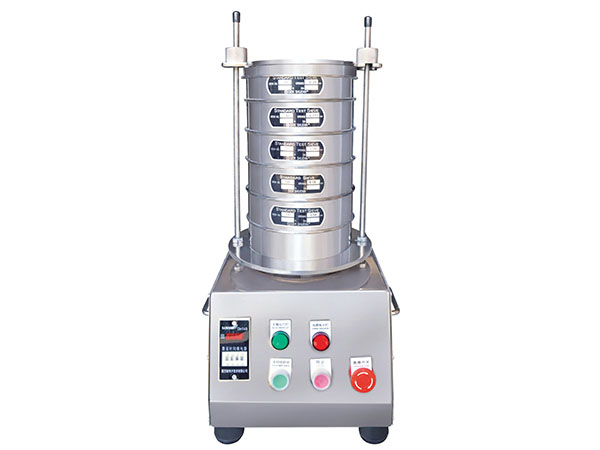

The vertical motor equipped with eccentric weights generates vertical, horizontal,and inclined three ways vibration to achieve good and excellent screening performance. No matter the material specific gravity is heavy or light weight, our machine can all achieve ideal screening effects.
Applicable Industries：
This machine is ideally to identify raw materials size and ratio,no matter in powder,liquid,or granule form.Good to work at the laboratory for all industries like ceramics,food processing,pharmaceutical,chemicals,metallurgy,electronics,plastics,rubber,and biological-technology.
Parameters：
Features：
The machine is with comfortable design, small dimension, light weight, low noise, low power consumption, high efficiency, no dust pollution, easy to install and move, durable, materials size can be identified and discharged speedily and automatically.
The mesh can be self-cleand, no powder fly, discharge speedily, high efficiency and the finest mesh size is up to 400mesh or even finer.
Unique screen structure is convenient and easy to install or change mesh which only takes 3-5 minutes, simple to operate and easy to clean.
Easy maintenance, can be assembled as a single layer or multiple layers. depends on actual nees. All parts contact to raw materials are made of stainless steel, which is environmental friendly and hygiene.
Note：
This product has been strictly inspected before delivery, but due to transport reasons or unexpected circumstances, please carefully check whether the model and specifications of the product are in line with what you order, whether the power source equipped is consistent with what is labeled on the nameplate (voltage error ± 10), is any part is damaged, whether any screws and other fastening parts are loose and whether the instruction, certificate of inspection and other accessories are complete before purchase..
Please hold the bottom of the machine body to avoid the machine from dropping onto your feet due to fall of the machine body during on-site installation.
Be careful to cut off the input power supply when wiring, after that, be sure to check whether there is any wire, screw or connector rug left in the device, check whether the screw is loose, whether there is any short circuit between the terminal parts and other terminals; whether the ground wiring is correct and don’t turn on the power supply before ensuring the terminal housing is well installed.
Operation：
Place the lower cover port and standard sieve basin with mesh needed on the engine base in order→ adjust the length of the expansion link according to the height of the standard sieve → fasten the expansion link to hold down the nut → enclose the pressing plate and fasten two black rubber-head nuts → check the allowable use range of the motor and machine, components fastening and other matters → Switch on the power supply and observe whether the red indicator light is on → adjust the timer between 0~30min, and set the desired filtration time → rotate on the knot switch and observe whether the green indicator light is on → the machine starts to work normally.
